Tendons in Prestressing Concrete are the high-strength steel elements that allow prestressed concrete to carry heavy loads, span longer distances, and perform reliably in demanding structural applications. They work by placing concrete into compression before the member is put into service, helping reduce the effects of tension, cracking, bending, and deflection. This makes them essential in precast and prestressed components used for bridges, piles, beams, slabs, marine structures, and other infrastructure projects.
Understanding how these tendons work is important because they do more than add strength. They give engineers better control over how a concrete member behaves during production, lifting, transportation, installation, and long-term use. This article explains what tendons are, how they work, where they are used, and why they matter in prestressed concrete construction.

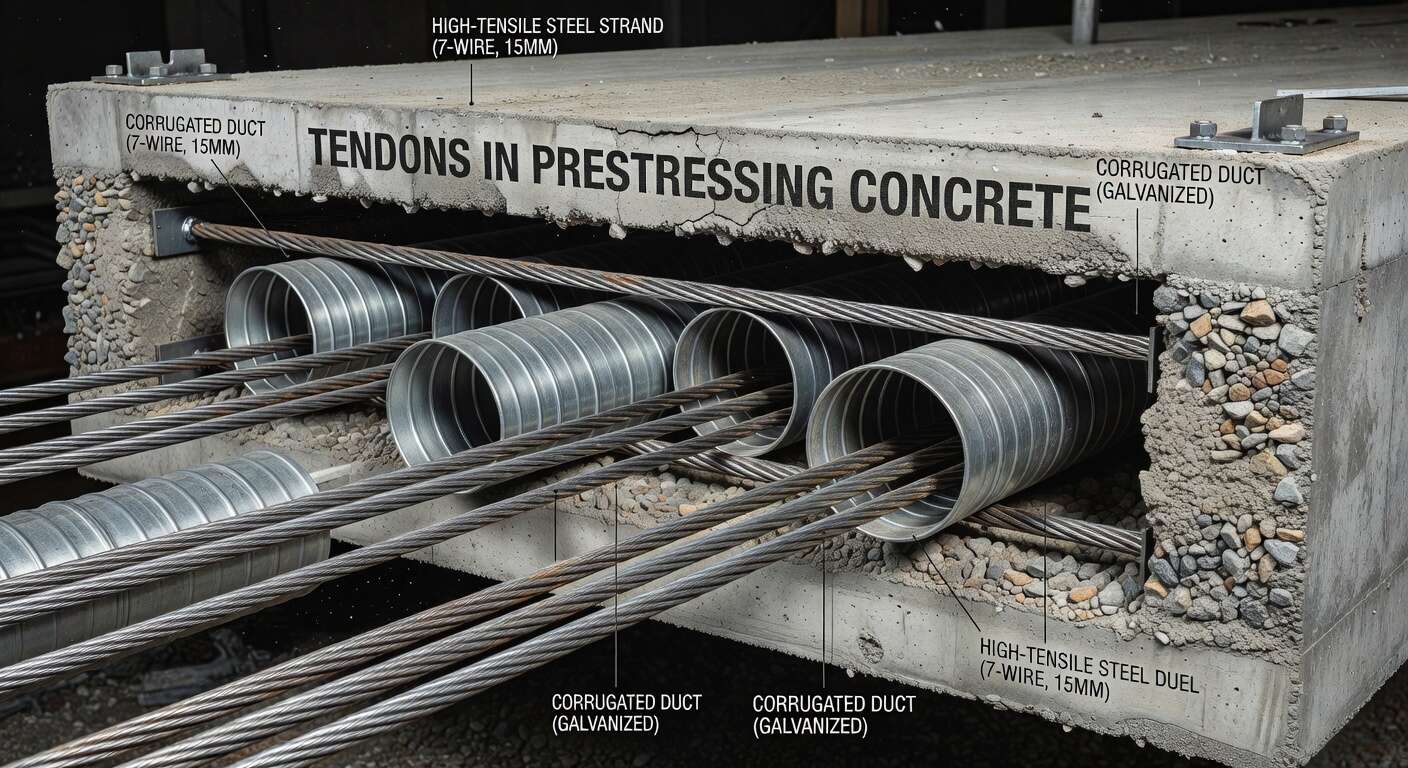

What Are Tendons in Prestressing Concrete?
Tendons in prestressing concrete are high-strength steel elements used to apply compressive force to a concrete member. They may be made from individual wires, multi-wire strands, or steel bars, depending on the project requirements and the type of prestressing system being used.
In many precast applications, seven-wire steel strand is the most common tendon because it is strong, compact, and reliable for repeatable production. The strand is stretched to a specified force, then that force is transferred into the concrete once the system is ready. This creates built-in compression that helps the member resist tensile stress from traffic, soil pressure, building loads, and environmental forces.
The tendon is not decorative steel. It is an engineered part of the structural system, and its size, spacing, location, tensioning force, concrete cover, bond, anchorage, and release timing all affect the finished product.
Why Concrete Needs Tendons in Prestressing Concrete
Concrete performs well under compression, which is why it is widely used in foundations, columns, walls, bridges, and major infrastructure systems. Its weakness is tension, where too much stress can lead to cracking and reduced performance. Reinforced concrete addresses this with rebar, which helps resist tensile forces after they develop.
Prestressed concrete takes a more proactive approach by using tendons to apply compression before the member carries major loads. This helps the concrete resist forces that would otherwise pull it apart, making tendons in prestressing concrete especially important for long-span and heavy-duty applications. For example, a bridge girder must handle its own weight, vehicle loads, lifting, hauling, erection, and long-term service conditions without becoming unnecessarily massive.
How Tendons Work
The basic process behind tendons in prestressing concrete can be explained in five steps:
- The tendon is selected according to the structural design.
- The tendon is stretched to a specified force.
- Concrete is placed, cured, and allowed to reach the required strength.
- The tendon force is transferred into the concrete.
- The finished member carries loads with improved resistance to tension and cracking.
Prestressing may sound simple, but it requires careful control of material strength, strand location, tensioning force, curing, release strength, and production tolerances. In a plant setting, the casting bed, strand pattern, concrete mix, curing conditions, and quality checks can all be managed before the product reaches the jobsite. This gives owners, engineers, and contractors a more predictable structural component.
For bridge applications, the Federal Highway Administration provides a useful technical example of prestressed concrete girder design through its prestressed concrete girder design resource. It shows how prestressing force, service stresses, and design checks fit into actual bridge engineering.
Pre-Tensioning and Post-Tensioning
Tendons in prestressing concrete are commonly used in two main systems: pre-tensioning and post-tensioning. Both methods use steel tendons to compress concrete, but they apply the force at different stages.
| Method | How It Works | Common Applications |
|---|---|---|
| Pre-tensioning | Tendons are tensioned before concrete is placed. After the concrete reaches the required strength, the tendon force is released into the member through bond. | Precast girders, piles, beams, slabs, and other plant-produced components. |
| Post-tensioning | Concrete is cast first with ducts, sleeves, or anchorages. Tendons are stressed after the concrete cures and are locked off at the ends. | Bridges, slabs, large cast-in-place members, and specialized structures. |
Pre-tensioning is common in precast production because strand layout, concrete placement, and release procedures can be repeated under strong quality control. Post-tensioning, on the other hand, is typically used when concrete is cast first and prestress is added later, often for large bridge or building applications. For Heldenfels, the strongest connection is precast/prestressed production, where products like bridge girders depend on controlled production, proper strand placement, and reliable prestressing practices.
Tendons vs. Rebar
Tendons and rebar both reinforce concrete, but they do not serve the same purpose. Confusing the two is a common mistake, and it weakens the explanation.
| Feature | Rebar | Prestressing Tendons |
|---|---|---|
| Reinforcement type | Passive | Active |
| Main function | Resists tension after it develops. | Applies compression before major loads occur. |
| Typical material | Mild reinforcing steel. | High-strength steel strand, wire, or bar. |
| Primary benefit | General reinforcement and crack control. | Load control, span efficiency, and deflection control. |
| Common use | Footings, walls, slabs, columns, and many reinforced concrete systems. | Girders, piles, beams, bridge members, slabs, and long-span components. |
Rebar is passive reinforcement because it works after tensile stress or cracking begins, while prestressing tendons are active because they are tensioned to apply compression before loading. However, rebar still plays an important role in prestressed concrete by supporting shear, confinement, end zones, connections, lifting areas, and local detailing. In many prestressed members, rebar and tendons work together to improve strength, control, and overall performance.
The key distinction is this: rebar helps resist tension, while tendons in prestressing concrete are used to reduce or counteract tension before it controls performance.
Why Tendons Matter in Precast Concrete
Precast concrete members are made before they are installed. That means they must perform during several stages, not just after final placement. A girder or pile may be lifted out of a form, moved through a plant, stored in a yard, loaded onto a truck, transported to a project site, lifted again, and installed before it ever carries its final service load.
Tendons in prestressing concrete help the member handle those temporary stages. That is a big deal. A component can be structurally sound in final position but still vulnerable during lifting or transport if it is not designed and handled correctly.
This is where tendons in prestressing concrete provide practical value. They help control cracking and deflection not only in the finished structure but also throughout production and construction. For contractors, that can mean more efficient installation; for owners, it can mean better long-term performance; and for engineers, it can mean more design flexibility.
Common Applications for Tendons in Prestressing Concrete
Tendons in prestressing concrete are used in many infrastructure, commercial, industrial, and marine applications. They are especially valuable when the structure must carry heavy loads, span longer distances, or perform in harsh environments.
Common applications include:
- Bridge girders
- Prestressed concrete piles
- Precast beams
- Structural slabs
- Parking structures
- Marine structures
- Industrial foundations
For Heldenfels customers, the most relevant examples are bridge girders and prestressed concrete piles. Bridge girders must support traffic loads while spanning over roads, railways, waterways, or other obstacles. Prestressed concrete piles must transfer loads deep into the ground and often perform in marine, coastal, industrial, or high-load foundation conditions.
In both cases, the tendon system is central to structural behavior. Without prestressing, many members would need to be larger, heavier, less efficient, or less practical to install.
What Contractors Should Know
Contractors do not need to calculate every prestressing force on a project, but they do need to respect the system. Prestressed members should not be treated like ordinary concrete pieces.
Important handling and installation considerations include:
- Use approved lifting points and lifting hardware.
- Follow the producer’s storage and dunnage requirements.
- Avoid unapproved cutting, drilling, or coring.
- Protect strand ends, bearing zones, and connection areas.
- Review camber expectations before erection.
- Do not assume a damaged prestressed member is acceptable without review.
Cutting or damaging a prestressing strand is not a small cosmetic issue. It can change how force moves through the member. That is why jobsite communication matters. If a field condition requires drilling, notching, patching, or modification, the right move is to ask before acting.
Bluntly: treating prestressed concrete like regular concrete creates risk. These members are engineered systems, not oversized blocks.
Design and Quality Factors That Matter
The performance of tendons in prestressing concrete depends on several design and production factors. Tendons in prestressing concrete are only one part of the system, but their performance depends on the details around them.
Key factors include:
- Tendon size and grade
- Strand pattern and spacing
- Prestressing force
- Concrete compressive strength
- Release strength
- Transfer length
- Concrete cover
- End-zone reinforcement
- Anchorage details
- Curing conditions
- Camber control
- Handling and storage procedures
Each factor affects how the final member behaves. Tendon location influences bending resistance. Concrete strength affects when prestress can be safely transferred. End-zone reinforcement helps manage concentrated stresses near the ends of a member. Camber control affects fit-up and field installation. This is why production experience matters.
Why Tendons Matter in Modern Infrastructure Projects
Modern infrastructure projects need concrete components that can handle heavy loads, harsh exposure, and long service lives. Prestressed concrete helps meet those demands because tendons in prestressing concrete improve span efficiency, crack control, load performance, and installation predictability. Since many prestressed components are produced in controlled plant environments, quality checks can happen before delivery, reducing field uncertainty and supporting more efficient construction.
For us, this topic matters because tendons are directly tied to the performance of products like bridge girders, prestressed concrete piles, beams, and other precast/prestressed components. A reader researching this subject is usually not looking for a textbook definition alone. They may be comparing structural options, reviewing a project specification, or trying to understand why a prestressed concrete solution is recommended.
Tendons in prestressing concrete help answer that question. They are part of what allows precast/prestressed members to deliver strength, durability, span efficiency, and reliable performance in infrastructure projects across many different environments.
Final Takeaway on Tendons in Prestressing Concrete
Tendons in prestressing concrete are high-strength steel elements that apply engineered compression so concrete can better resist tension, cracking, bending, and deflection. They are commonly used in bridge girders, piles, beams, slabs, marine structures, parking structures, and other demanding precast or cast-in-place applications. Their biggest value is control, helping improve span efficiency, handling, camber, service behavior, and long-term performance.
For Heldenfels customers, prestressed concrete performance depends on good design, accurate production, proper tendon placement, and disciplined handling. When those details are done right, components like bridge girders, prestressed concrete piles, industrial foundations, and marine structures can support heavy-duty infrastructure with confidence. Understanding the role of tendons early helps teams make better decisions and avoid costly field problems later.
