In the world of construction, the choice of materials and methods can significantly impact the strength, durability, and cost-efficiency of projects.
Two commonly used techniques are precast prestressed beams and ordinary reinforced concrete (RC) beams. Although they may serve similar purposes in building structures, they have distinct differences that make them suitable for various applications.
In this post, we will explore these differences in detail to help you make informed decisions in your construction projects.

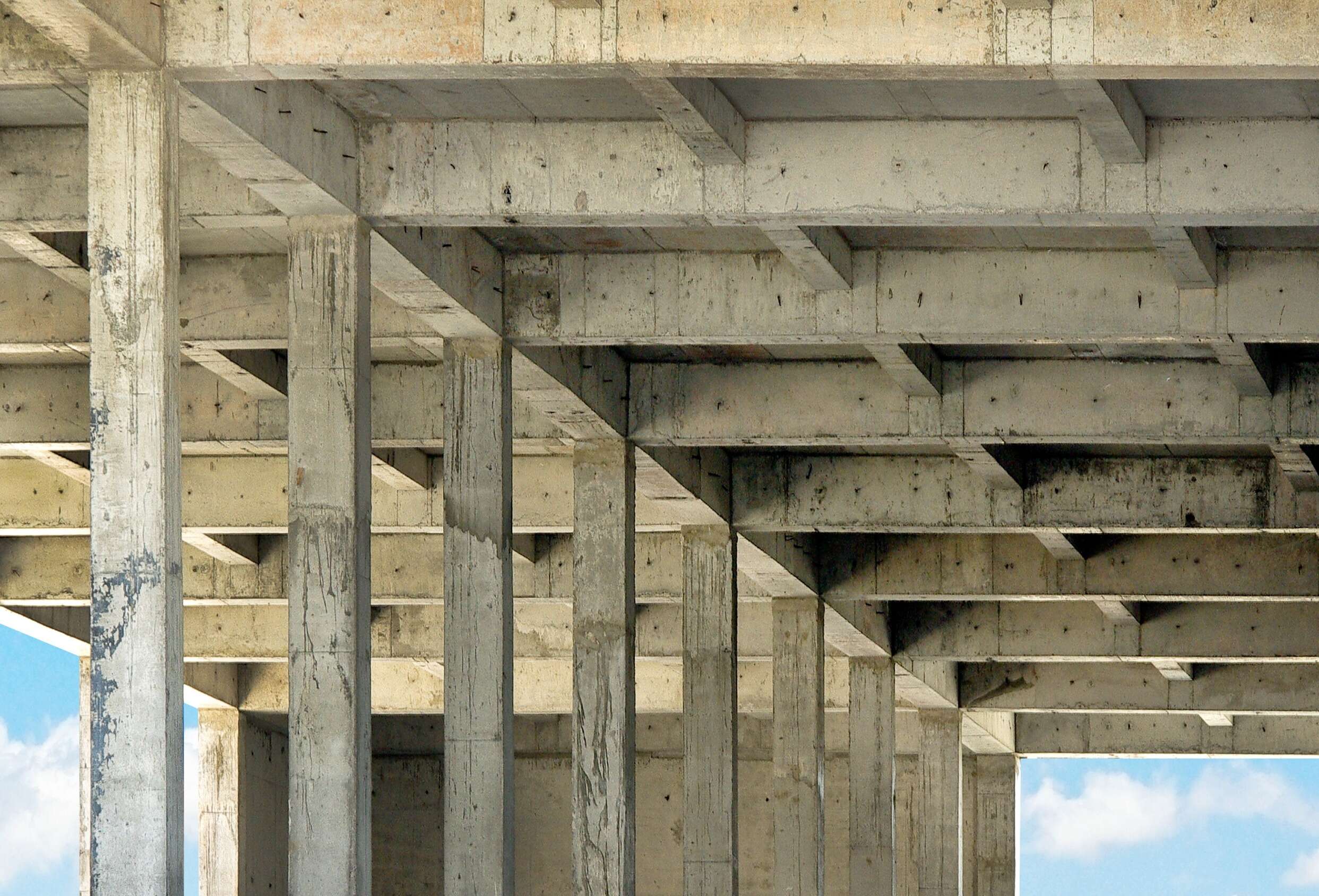

Understanding Reinforced Concrete (RC) Beams
What Are RC Beams?
Ordinary reinforced concrete (RC) beams are structural elements made of concrete that incorporate steel reinforcement bars (rebar) to enhance their tensile strength. Concrete itself is strong in compression but weak in tension, which is why steel rebar is added to counteract tensile forces.
The combination of concrete and steel allows RC beams to withstand various loads and stresses, making them ideal for use in construction projects such as bridges, buildings, and other infrastructure.
Additionally, the placement and quantity of rebar within the concrete are carefully designed based on the specific requirements of each project to ensure maximum strength and durability.
Key Characteristics
- Composition: RC beams consist of concrete and embedded steel rebar.
- Strength: They are strong in compression due to concrete and in tension due to the steel rebar.
- Flexibility: The steel rebar can be placed in various configurations to meet the structural demands of different buildings.
- Construction Method: RC beams are typically cast in place at the construction site, allowing for flexibility in design adjustments.
Benefits of RC Beams
- Cost-Effective: Generally cheaper to produce and install.
- Ease of Construction: Simpler and more straightforward construction process.
- Versatility: Suitable for a wide range of applications and structural configurations.
Understanding Precast Prestressed Beams
What Are Precast Prestressed Beams?
Precast prestressed beams are concrete beams that are manufactured in a controlled factory environment, ensuring consistent quality and precision. In this environment, they undergo a process called prestressing.
During prestressing, steel strands or cables are tensioned before the concrete is poured into the molds. These steel elements are typically stretched using hydraulic jacks to a predetermined force. Once the concrete hardens and reaches the required strength, the tension in the steel is gradually released, transferring the stress to the concrete.
This process compresses the concrete, significantly enhancing its strength and durability against tensile forces. The result is a highly efficient structural component that can bear larger loads and span longer distances than regular reinforced concrete beams.
Key Characteristics
- Composition: Precast prestressed beams consist of concrete and tensioned steel strands or cables.
- Strength: The prestressing process imparts additional strength, making them highly resistant to both compression and tension.
- Consistency: Factory-controlled manufacturing ensures consistent quality and strength.
- Construction Method: They are manufactured off-site and transported to the construction site for installation.
Benefits of Precast Prestressed Beams
- High Strength: Prestressing enhances the load-carrying capacity and reduces the likelihood of cracking.
- Durability: The compression introduced during prestressing improves the beam’s lifespan.
- Speed of Construction: Being precast means they can be quickly installed on-site, reducing construction time.
- Quality Control: Factory production allows for rigorous quality control measures.
Key Differences Between RC Beams and Precast Prestressed Beams
Manufacturing Process
- RC Beams: Typically cast in place on the construction site, allowing for adjustments during construction.
- Precast Prestressed Beams: Manufactured in a factory setting under controlled conditions, ensuring consistent quality.
Structural Performance
- RC Beams: Strong in compression due to concrete and in tension due to rebar, but more prone to cracking over time.
- Precast Prestressed Beams: Superior resistance to both compression and tension, resulting in a longer lifespan and less maintenance.
Cost and Time Efficiency
- RC Beams: Generally more cost-effective initially but may require more time for on-site construction and curing.
- Precast Prestressed Beams: Higher initial cost due to manufacturing and transportation but offer faster installation and lower long-term maintenance costs.
Versatility and Application
- RC Beams: Versatile in application, suitable for various structural configurations and on-site adjustments.
- Precast Prestressed Beams: Best suited for projects requiring high strength and durability, such as bridges, large commercial buildings, and parking structures.
Quality Control
- RC Beams: Quality can vary depending on site conditions and construction practices.
- Precast Prestressed Beams: Manufactured under strict quality control measures, ensuring consistent performance and reliability.
Applications of RC Beams
Residential Buildings
RC beams are commonly used in residential construction due to their cost-effectiveness and ease of use. They can be cast on-site to fit custom designs and layouts, making them ideal for various home structures such as floors, roofs, and support beams.
Commercial Buildings
In commercial construction, RC beams are often employed for their versatility and strength. They can support large loads and be adapted for different architectural designs, making them a popular choice for offices, shopping malls, and hospitals.
Infrastructure Projects
RC beams are also a staple in infrastructure projects like bridges, tunnels, and highways. Their ability to withstand heavy loads and environmental stressors makes them suitable for such challenging applications.
Applications of Precast Prestressed Beams
Bridges
Precast prestressed beams in Texas are frequently used in bridge construction due to their exceptional strength and durability. They can span long distances without support, reducing the need for intermediate supports and simplifying construction.
Large-Scale Commercial Buildings
For skyscrapers and large commercial buildings, precast prestressed beams provide the necessary support and resistance to both compressive and tensile forces. Their high load-bearing capacity makes them ideal for multi-story structures.
Parking Structures
Precast prestressed beams are perfect for parking structures because they can handle the significant weight and provide long, unobstructed spans. This reduces the number of columns needed, maximizing parking space.
Conclusion
Both precast prestressed beams and ordinary reinforced concrete (RC) beams have their unique advantages and are suitable for different types of construction projects. RC beams are versatile, cost-effective, and easy to construct, making them a popular choice for many building structures.
On the other hand, precast prestressed beams offer superior strength, durability, and faster installation times, making them ideal for projects requiring high performance and efficiency.
When choosing between the two, consider the specific requirements of your project, including load-bearing capacity, budget, construction timeline, and long-term maintenance.
By understanding the differences and benefits of each method, you can make informed decisions that will enhance the success and longevity of your construction projects.
